Ø380mm x 32.0mm Ventilated Brake Disc - 12 x 214.2mm PCD - Floating

Ø380mm x 32.0mm Ventilated Brake Disc - 12 x 214.2mm PCD - Floating

CP7177-132CG12

€388.67 €478.06
Sale Sold out

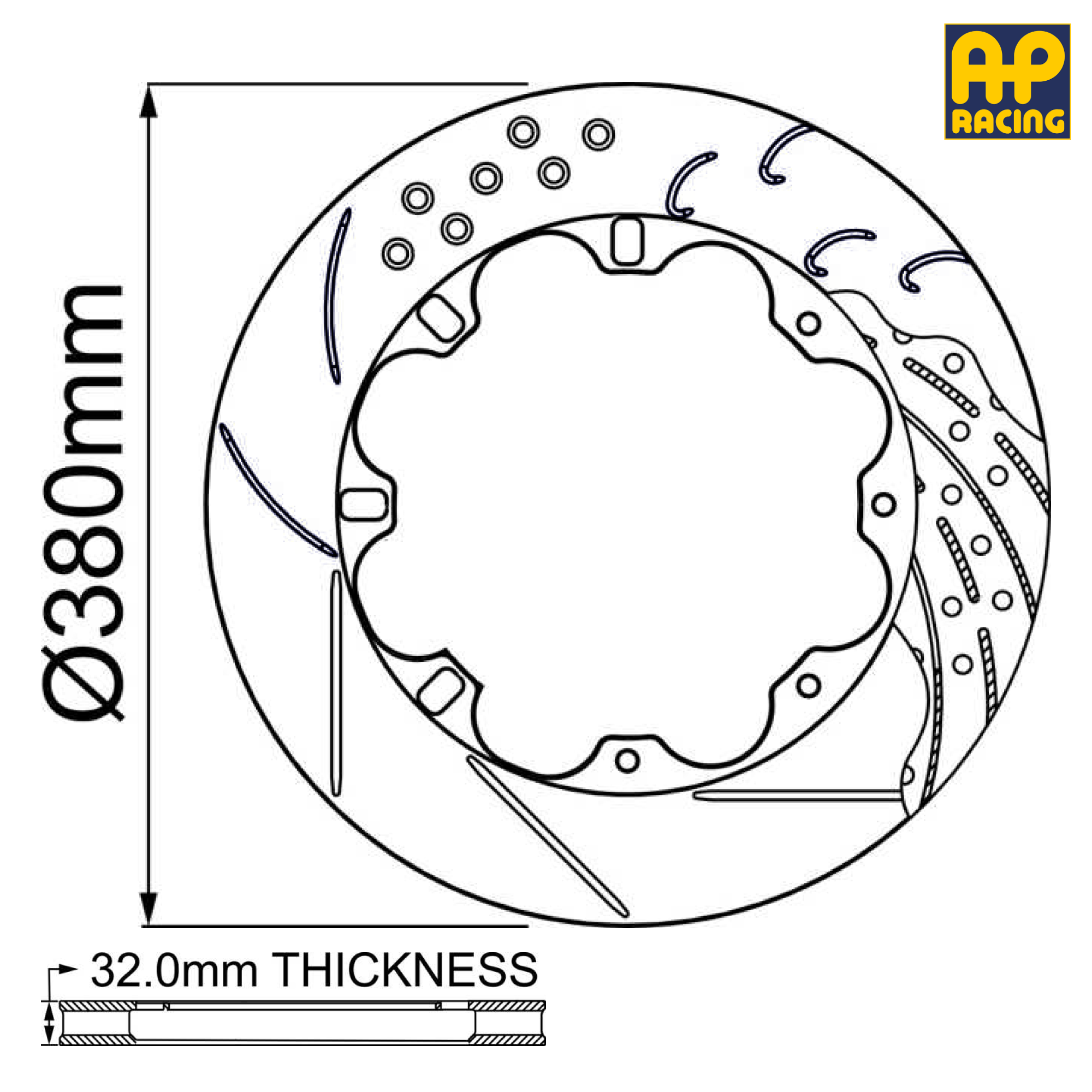

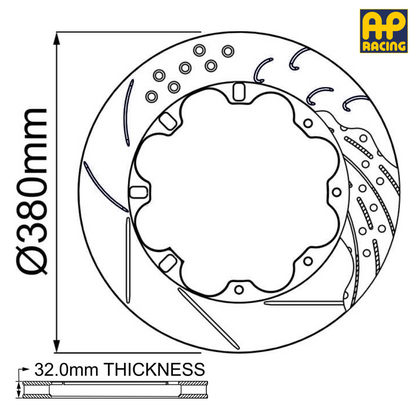

▶ Brake Disc Dimensions
Outside Diameter 380mm
Thickness 32.0mm
Mounting P.C.D 214.2mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 236.5mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 7.03mm
Max Pad Depth 55.0mm
No. of Vanes 72
Air Gap 17.0mm
View full details

380mm x 32.0mm Brake Disc Dimensions

Outside Diameter 380mm
Thickness 32.0mm
Mounting P.C.D 214.2mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 236.5mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 7.03mm
Max Pad Depth 55.0mm
No. of Vanes 72
Air Gap 17.0mm
Face Types Available CG12 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG12 - Curved Grooves (Backward Facing) / Right-Hand Side CP7177-132CG12
CG12 - Curved Grooves (Backward Facing) / Left-Hand Side CP7177-133CG12

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
