• Ø380mm x 36.0mm Ventilated Brake Disc - 12 x 214.2mm PCD - Bolted - Race and Rally
1 2

Ø380mm x 36.0mm Ventilated Brake Disc - 12 x 214.2mm PCD - Bolted

Ø380mm x 36.0mm Ventilated Brake Disc - 12 x 214.2mm PCD - Bolted

CP7177-448GA

€488.43 €600.77
Sale Sold out

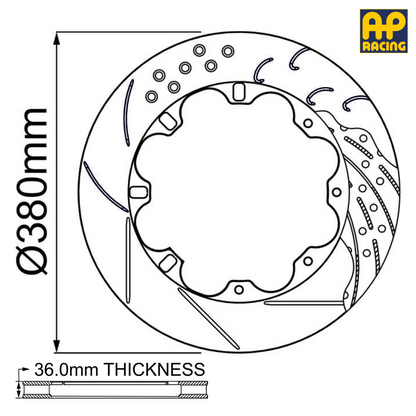

▶ Brake Disc Dimensions
'A' - Outside Diameter 380mm
'B' - Thickness 36.0mm
'M' - Mounting P.C.D 214.2mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 236.0mm
'D' - Inside Flange Diameter 195.5mm
'H' - Mounting Flange Thickness 7.03mm
Max Pad Depth 70.0mm
No. of Vanes 72
Air Gap 17.0mm

Out of stock, contact for leadtime

View full details

380mm x 36.0mm Brake Disc Dimensions

'A' - Outside Diameter 380mm
'B' - Thickness 36.0mm
'M' - Mounting P.C.D 214.2mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 236.0mm
'H' - Inside Flange Diameter 195.5mm
Mounting Flange Thickness 7.03mm
Max Pad Depth 70.0mm
No. of Vanes 72
Air Gap 17.0mm
Face Types Available GA - 'J' Hook Design
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
GA - 'J' Hook Design / Right-Hand Side CP7177-448GA
GA - 'J' Hook Design / Left-Hand Side CP7177-449GA


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
