• Ø400mm x 36.0mm Ventilated Brake Disc - 12 x 270.0mm PCD - Bolted - Race and Rally
1 1

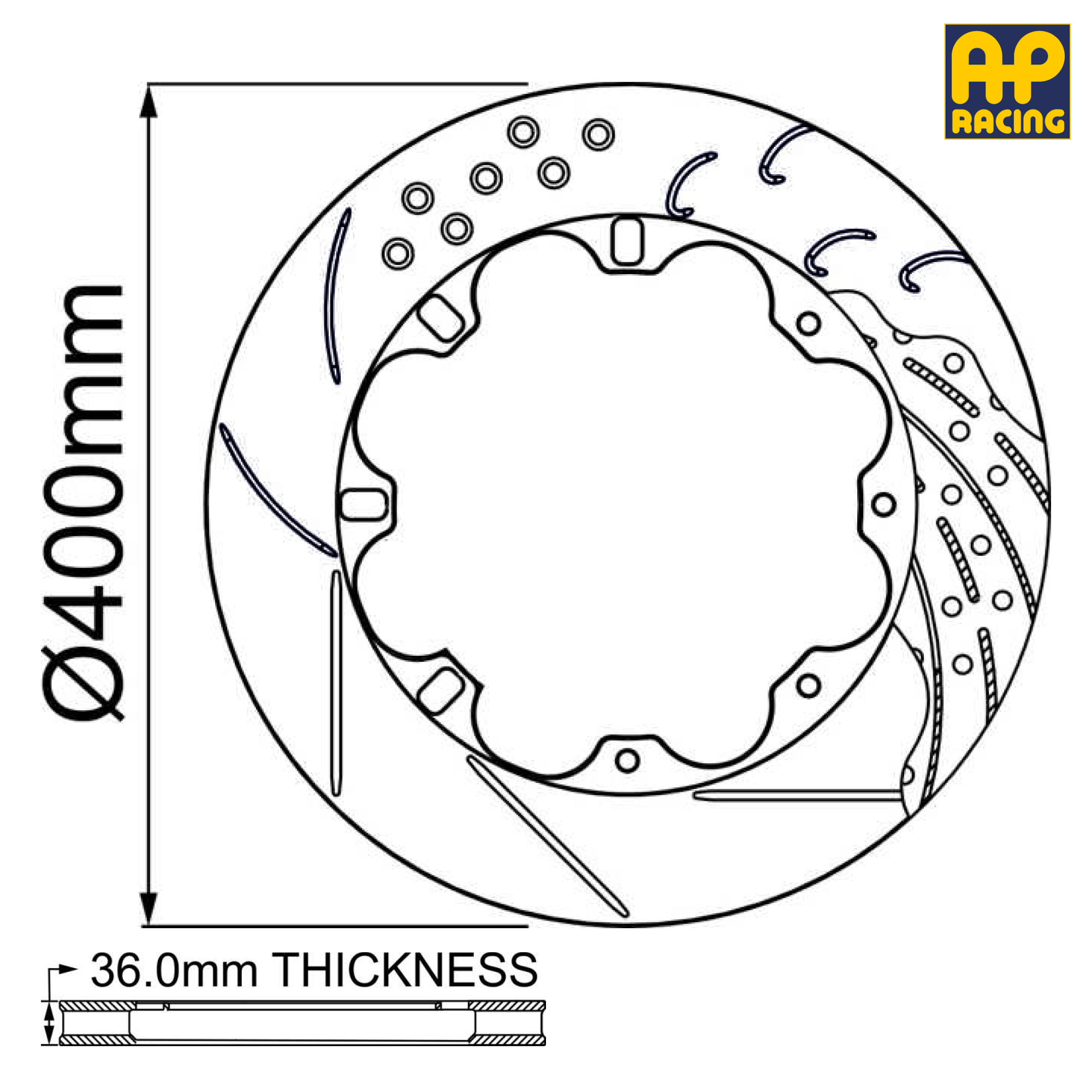

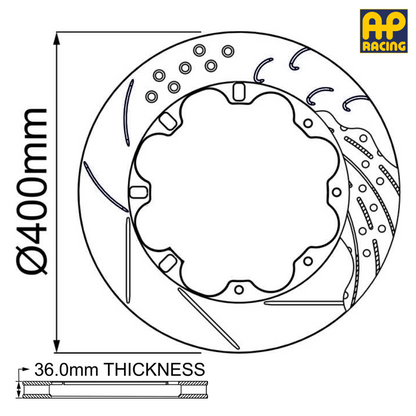

Ø400mm x 36.0mm Ventilated Brake Disc - 12 x 270.0mm PCD - Bolted

Ø400mm x 36.0mm Ventilated Brake Disc - 12 x 270.0mm PCD - Bolted

CP4095-104CG12

€685.22 €842.82
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 400mm
Thickness 36.0mm
Mounting P.C.D 270.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 288.7mm
Inside Flange Diameter 253.2mm
Mounting Flange Thickness 7.0mm
Max Pad Depth 54.0mm
No. of Vanes 73
Air Gap 19.0mm
View full details

400mm x 36.0mm Brake Disc Dimensions

Outside Diameter 400mm
Thickness 36.0mm
Mounting P.C.D 270.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 288.7mm
Inside Flange Diameter 253.2mm
Mounting Flange Thickness 7.0mm
Max Pad Depth 54.0mm
No. of Vanes 73
Air Gap 19.0mm
Face Types Available CG12 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG12 - Curved Grooves (Backward Facing) / Right-Hand Side CP4095-104CG12
CG12 - Curved Grooves (Backward Facing) / Left-Hand Side CP4095-105CG12

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
