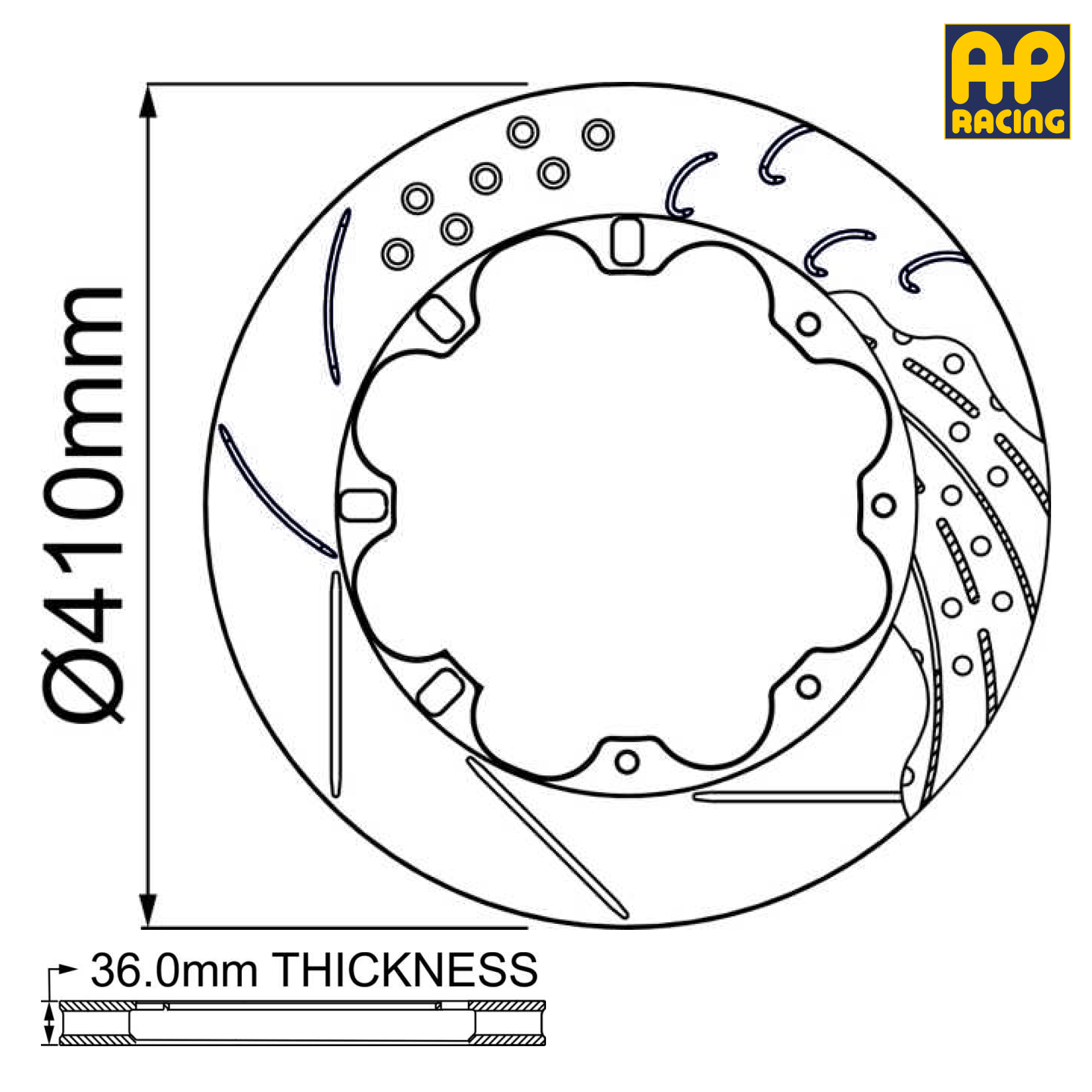

Ø410mm x 36.0mm Ventilated Brake Disc - 12 x 245.5mm PCD - Bolted - 266.0mm Eye Diameter

Ø410mm x 36.0mm Ventilated Brake Disc - 12 x 245.5mm PCD - Bolted - 266.0mm Eye Diameter

CP4095-102CG8

€685.22 €842.82
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 410mm
Thickness 36.0mm
Mounting P.C.D 245.5mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 266.0mm
Inside Flange Diameter 225.5mm
Mounting Flange Thickness 8.1mm
Max Pad Depth 70.0mm
No. of Vanes 73
Air Gap 19.0mm
View full details

410mm x 36.0mm Brake Disc Dimensions

Outside Diameter 410mm
Thickness 36.0mm
Mounting P.C.D 245.5mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 266.0mm
Inside Flange Diameter 225.5mm
Mounting Flange Thickness 8.1mm
Max Pad Depth 70.0mm
No. of Vanes 73
Air Gap 19.0mm
Face Types Available CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP4095-102CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP4095-103CG8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
