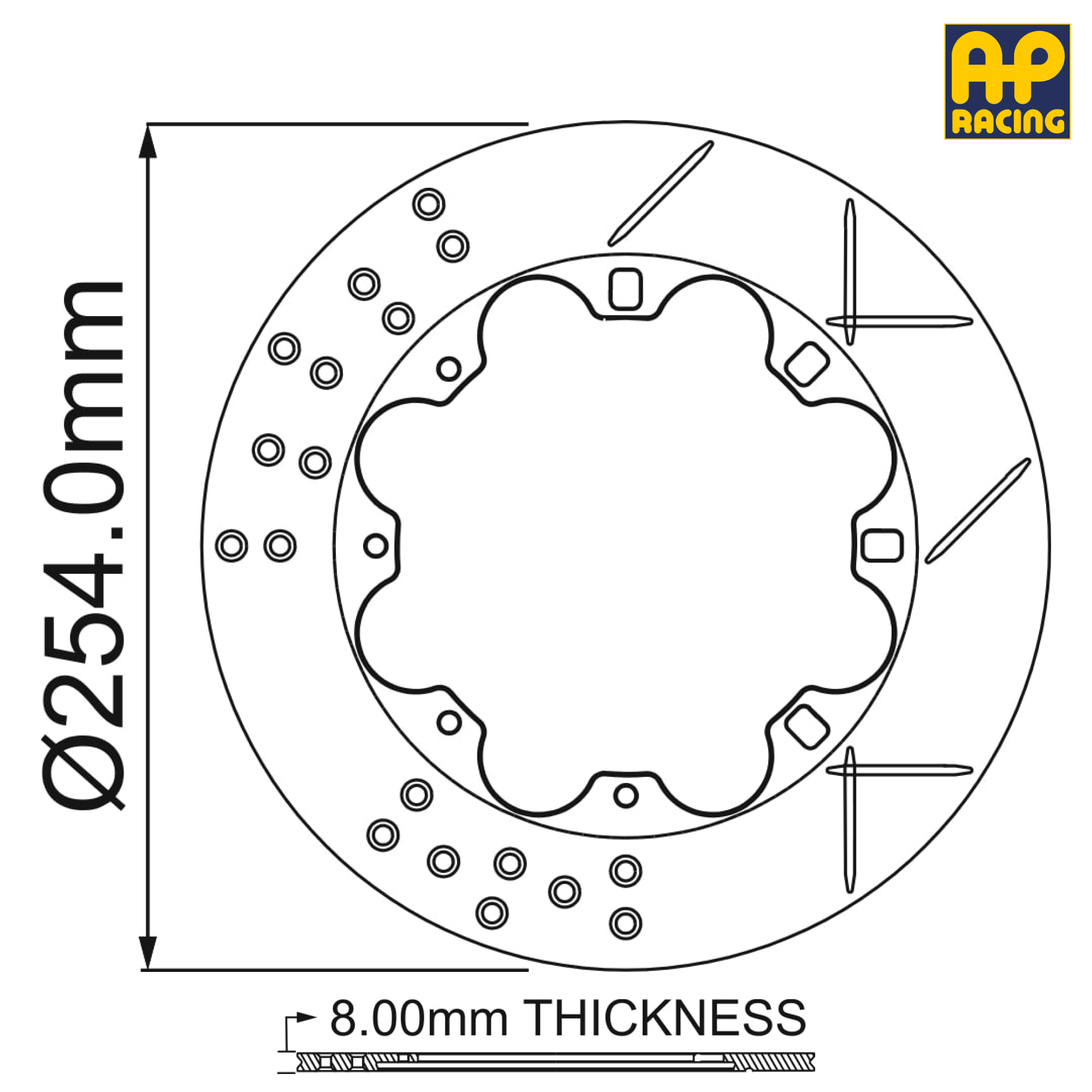

254mm x 8.0mm Brake Disc Dimensions

Outside Diameter	254mm
Thickness	8.0mm
Mounting P.C.D.	146.0mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	165.0mm
Spigot Diameter	mm
Inside Flange Diameter	134.0mm
Mounting Flange Thickness	6.0mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
