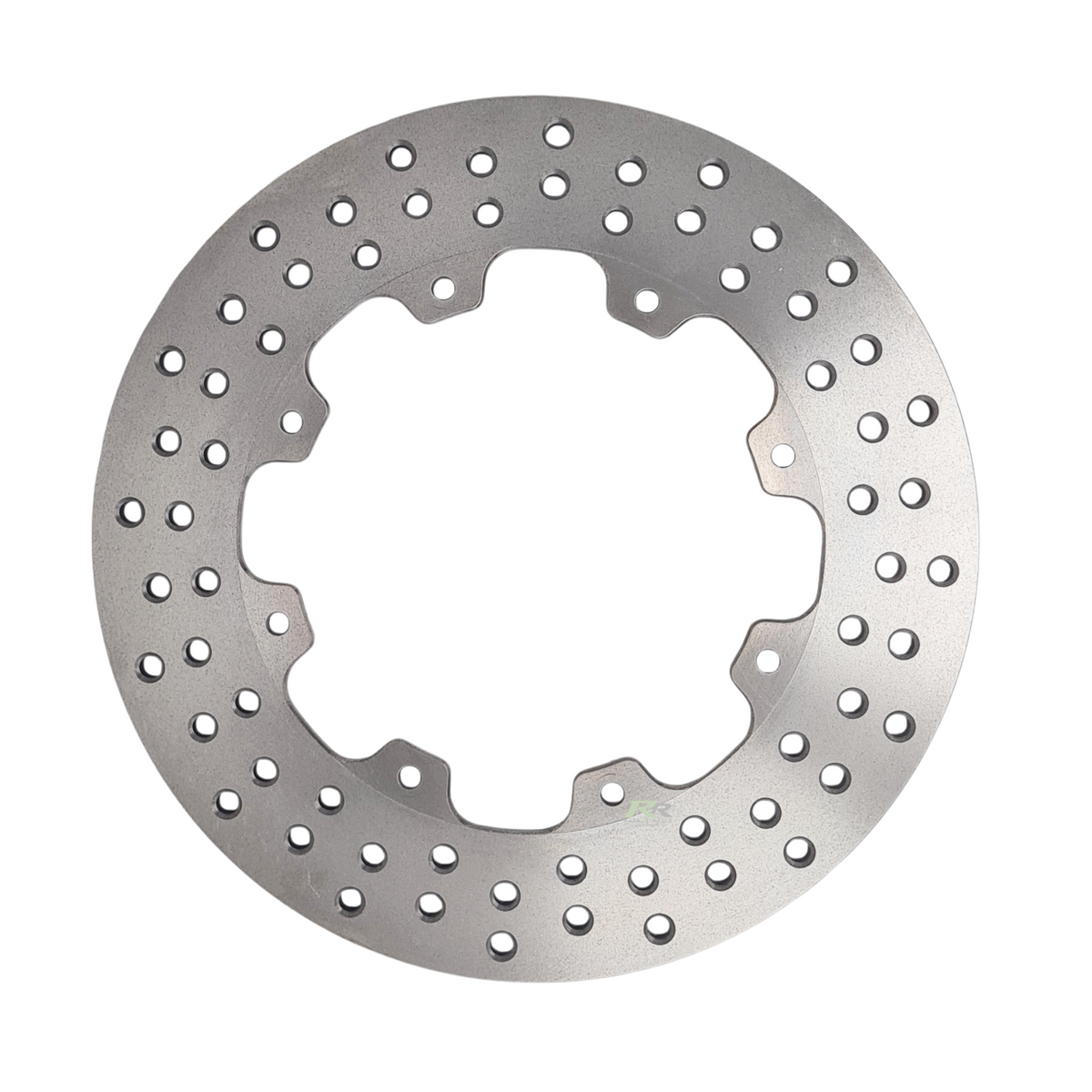

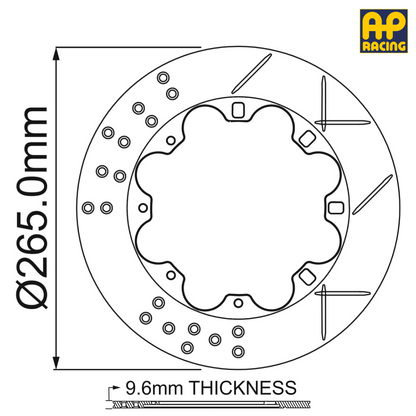

265mm x 9.6mm Brake Disc Dimensions

Outside Diameter	265mm
Thickness	9.6mm
Mounting P.C.D.	158.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	177.0mm
Spigot Diameter	mm
Inside Flange Diameter	141.0mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	2Kg
Face Types Available	D - Cross Drilled P - Plain Face G4 - Grooved (Straight Forward) G8 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
