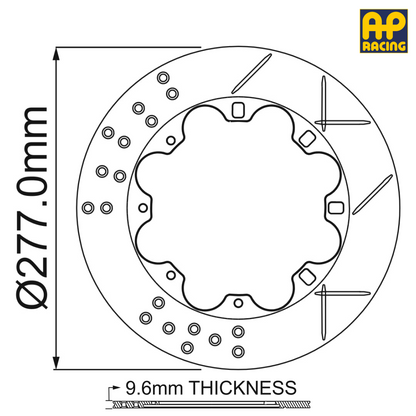

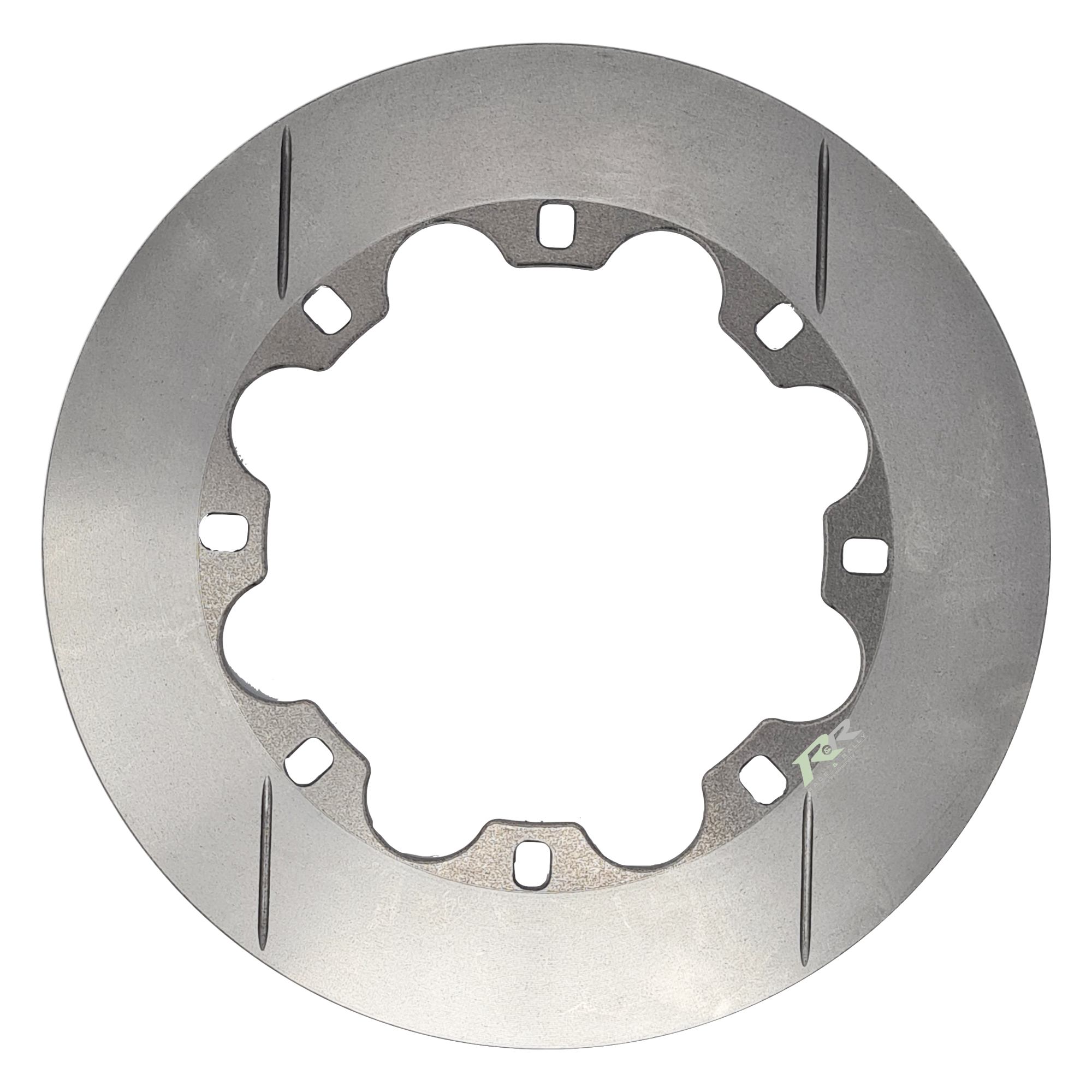

277mm x 9.6mm Brake Disc Dimensions

Outside Diameter	277mm
Thickness	9.6mm
Mounting P.C.D.	176.8mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	192.0mm
Spigot Diameter	mm
Inside Flange Diameter	154.0mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D43.0
No. of Vanes
Air Gap
Weight	2.3Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
