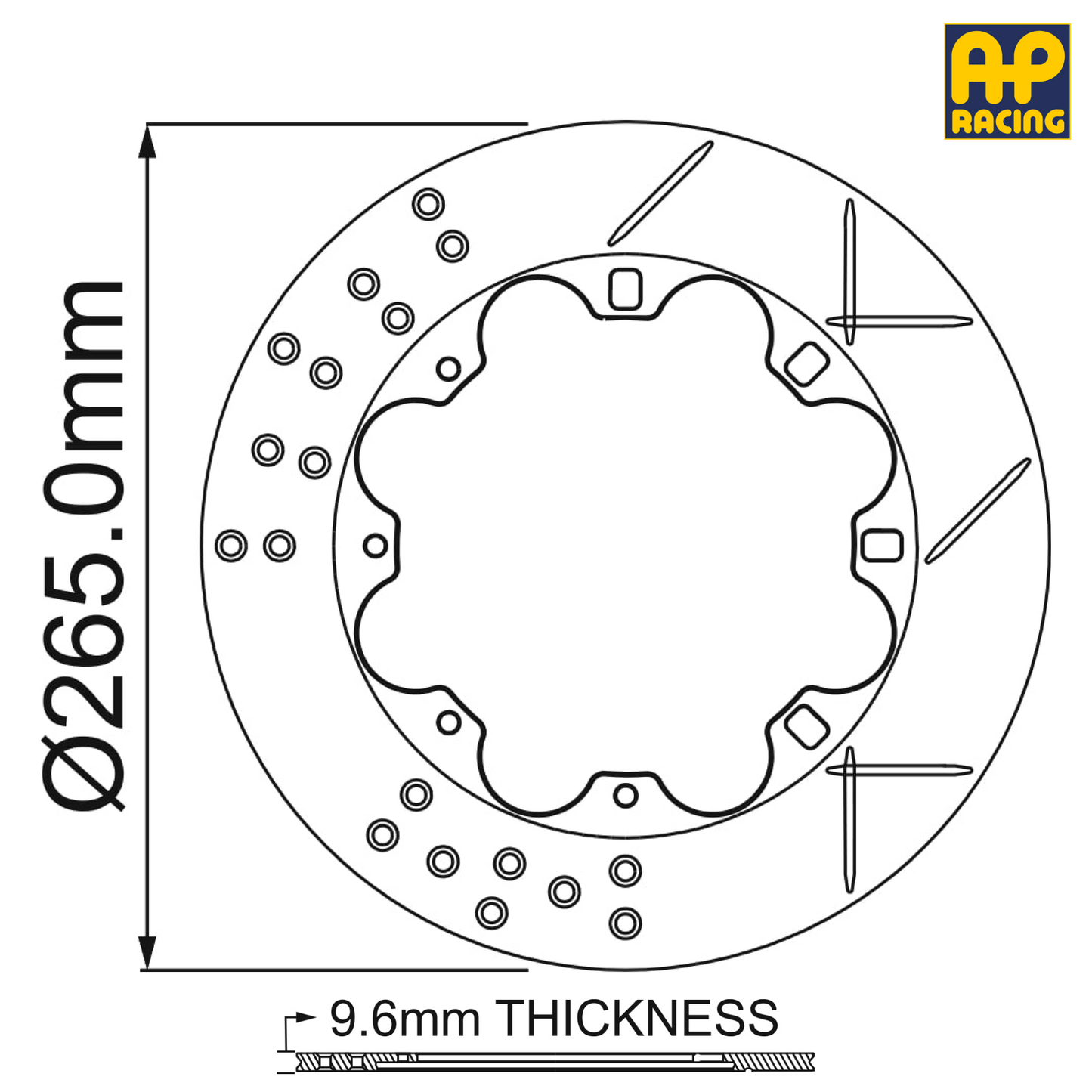

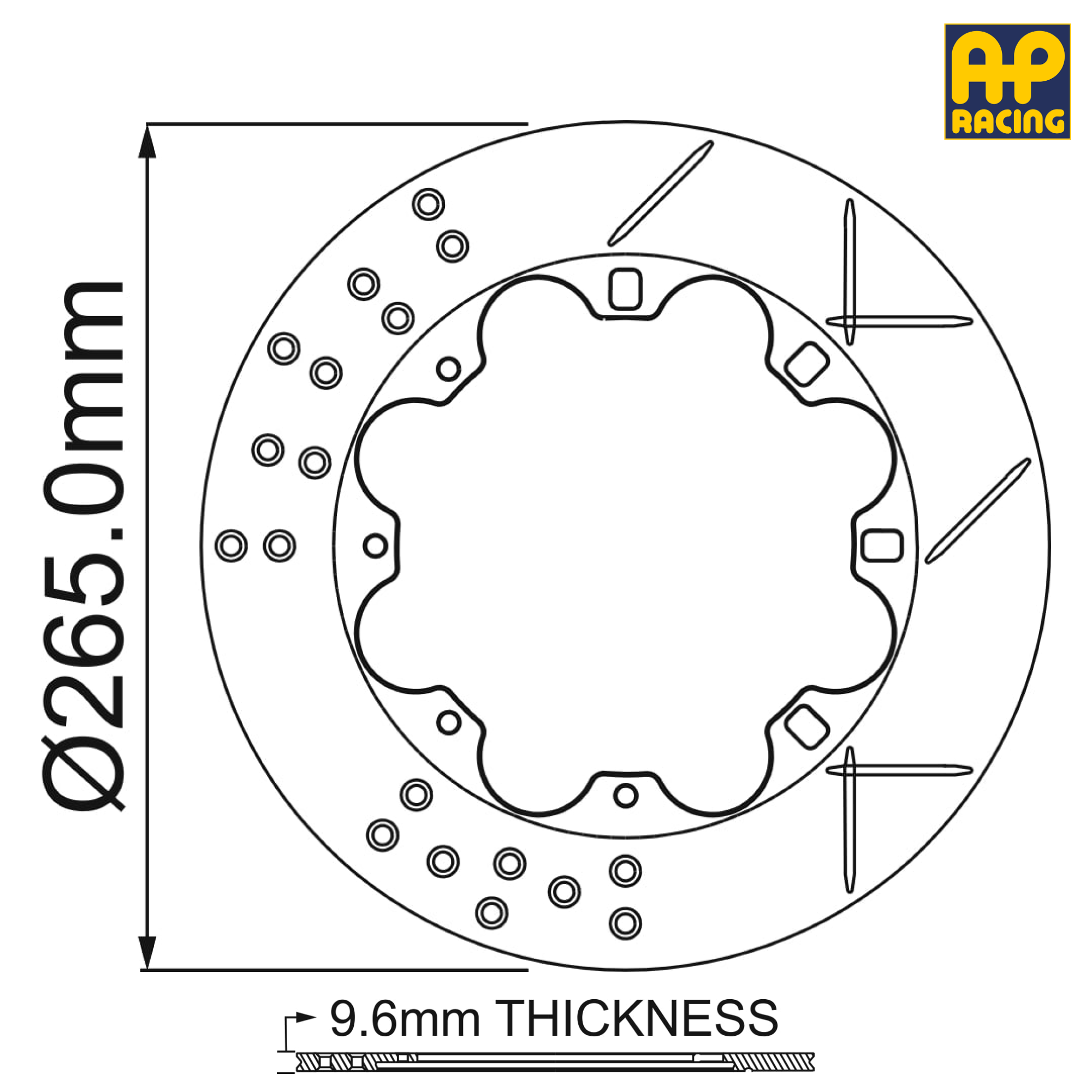

265mm x 9.6mm Brake Disc Dimensions

Outside Diameter	265mm
Thickness	9.6mm
Mounting P.C.D.	158.8mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	177.0mm
Spigot Diameter	mm
Inside Flange Diameter	135.7mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	2.1Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
