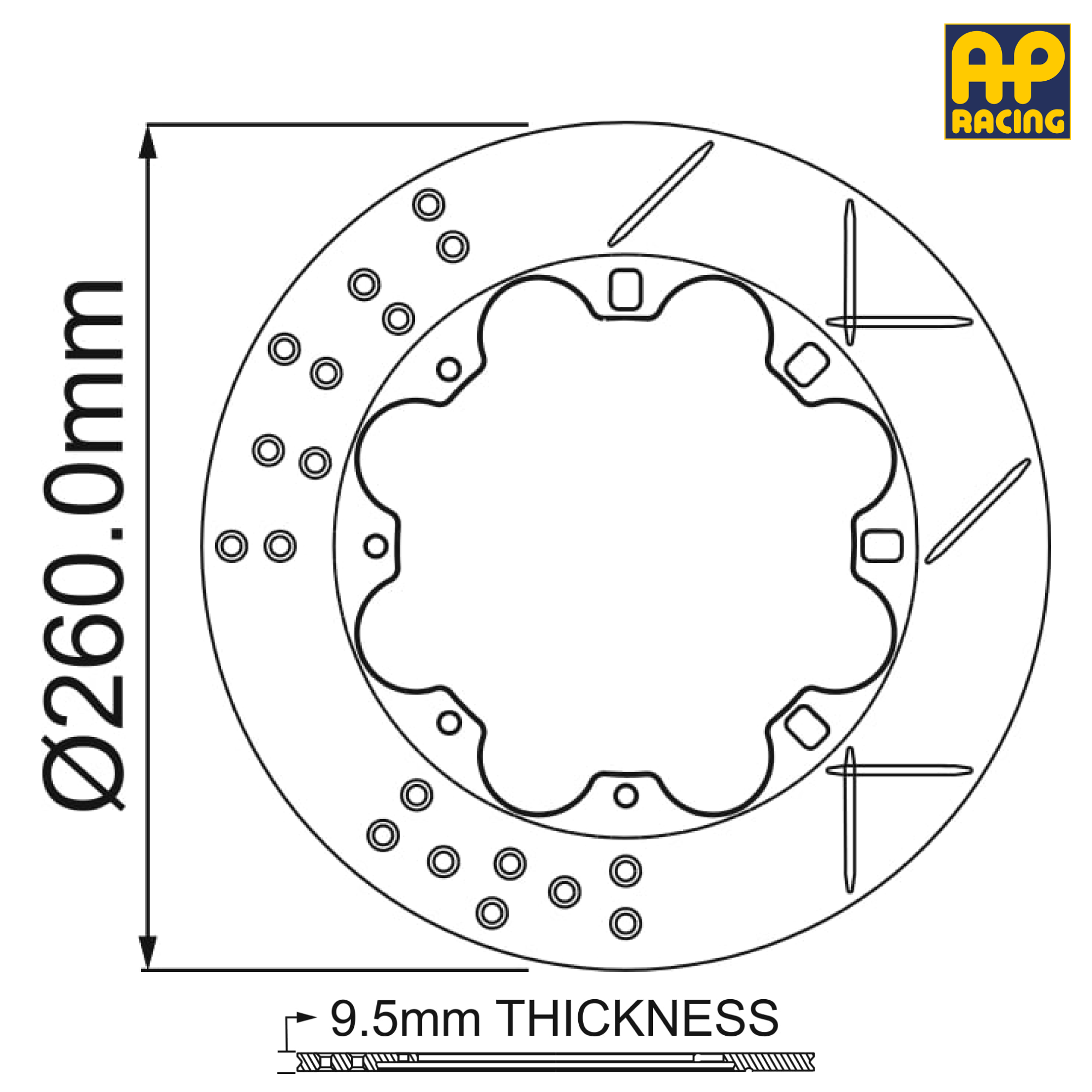

260mm x 9.5mm Brake Disc Dimensions

Outside Diameter	260mm
Thickness	9.5mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	172.7mm
Spigot Diameter	mm
Inside Flange Diameter	123.2mm
Mounting Flange Thickness	5.1mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
