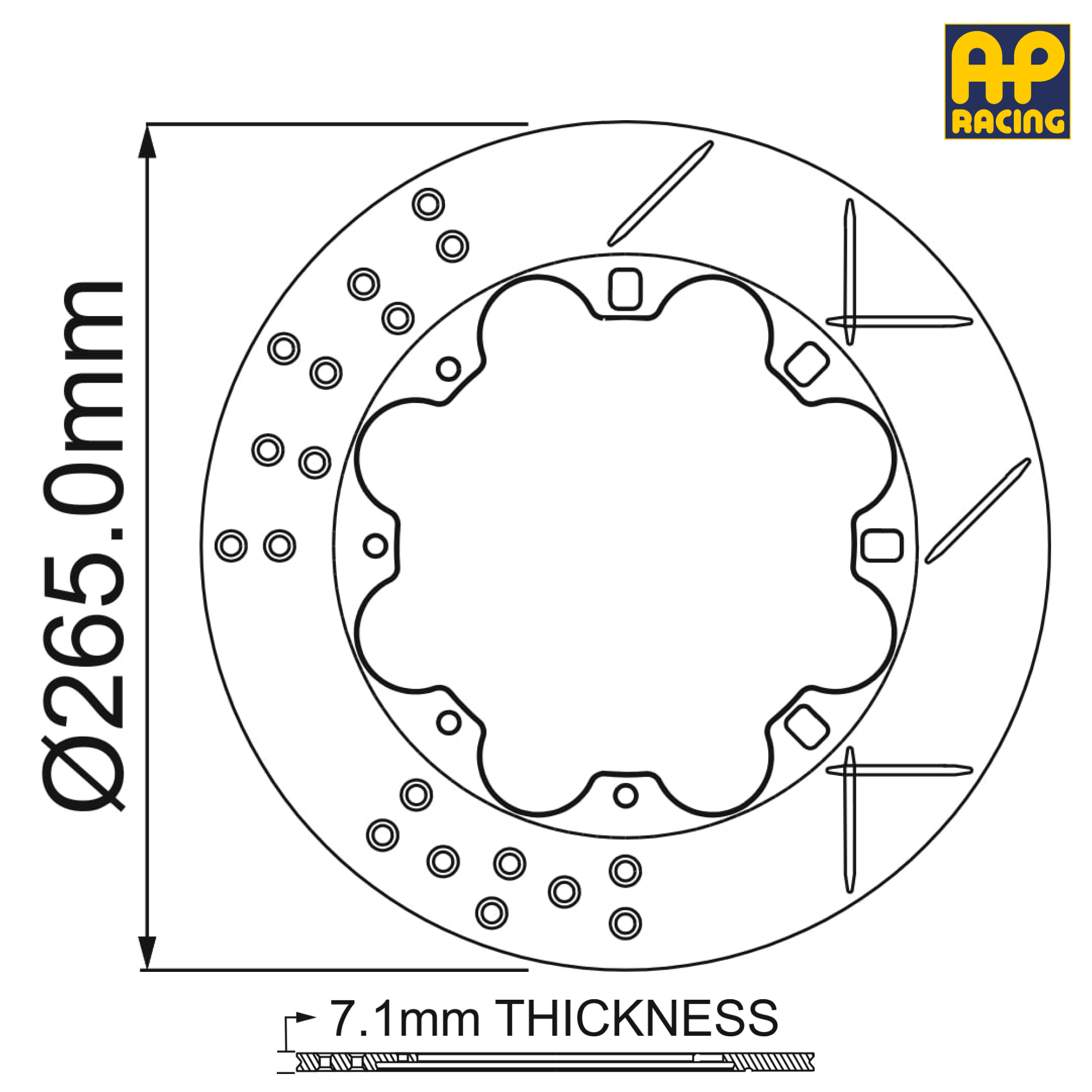

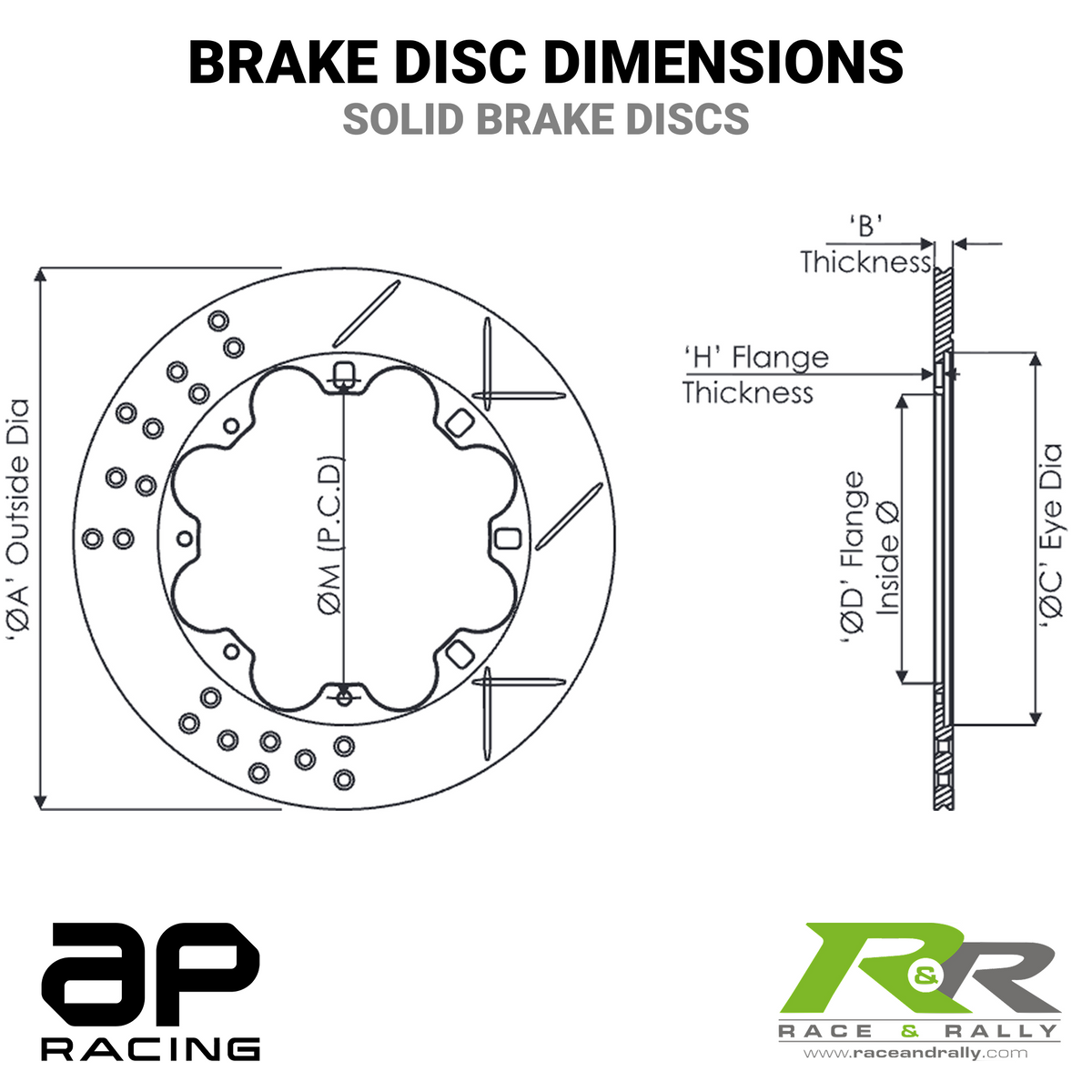

265mm x 7.1mm Brake Disc Dimensions

Outside Diameter	265mm
Thickness	7.1mm
Mounting P.C.D.	158.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	177.0mm
Spigot Diameter	mm
Inside Flange Diameter	141.0mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward) D - Cross Drilled
Disc Handing	Universal
Notes
