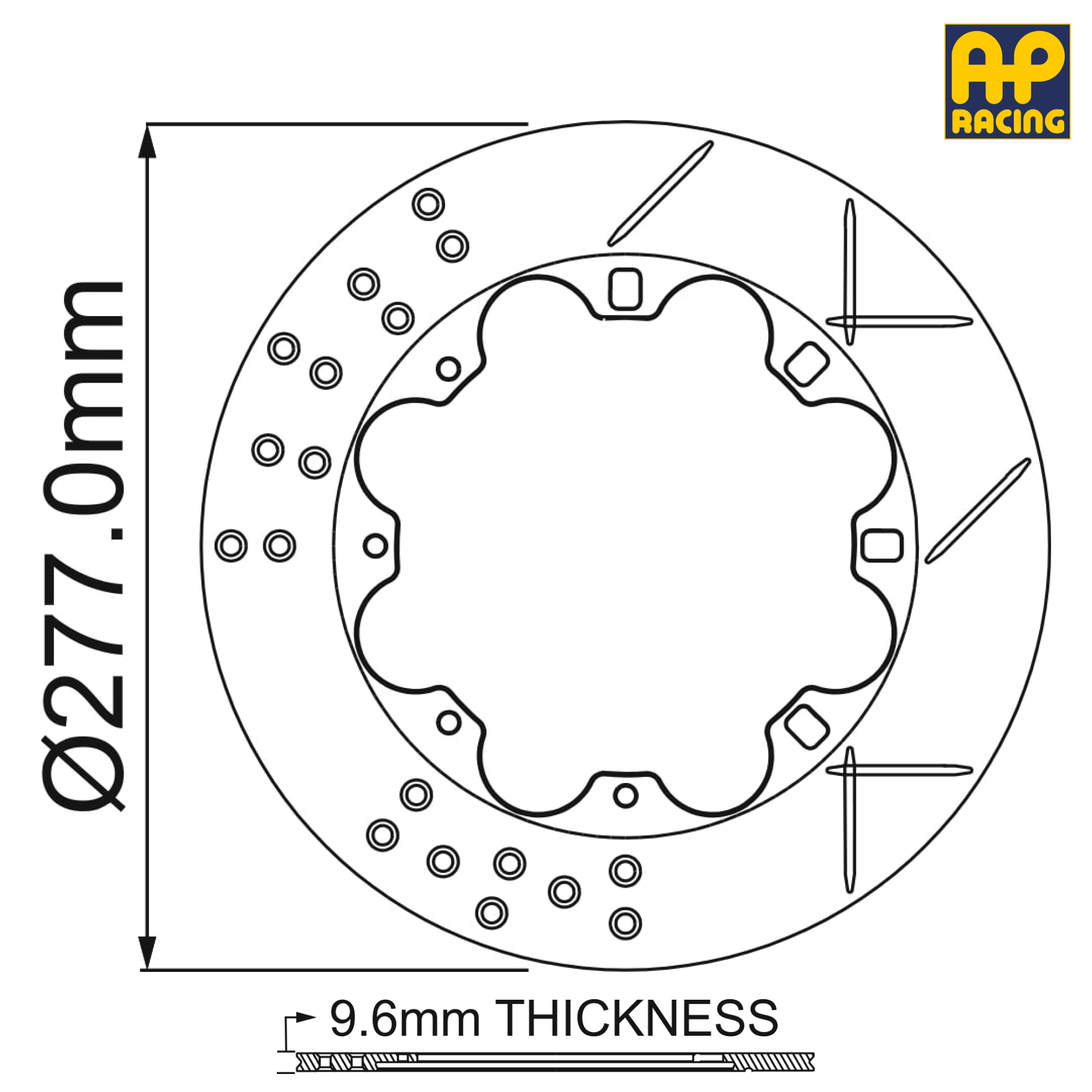

• Ø277mm x 9.6mm Solid Brake Disc - 8 x 176.8mm PCD - Race and Rally
1 1

Ø277mm x 9.6mm Solid Brake Disc - 8 x 176.8mm PCD - Bolted

Ø277mm x 9.6mm Solid Brake Disc - 8 x 176.8mm PCD - Bolted

CP2866-178G4

€223.10 €274.41
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 277mm
  • Thickness - 9.6mm
  • Mounting P.C.D. - 176.8mm
  • Mounting Type - Bolted - 8 Bolt
  • Spigot Diameter - mm
  • Eye Diameter: - 192.0mm
  • Inside Flange Diameter - 159.0mm
  • Mounting Flange Thickness - 4.8mm
  • Mounting Offset - mm
  • Max Pad Depth - D43.0
  • No. of Vanes -
  • Air Gap - mm
  • Weight - 2.4Kg
View full details
277mm x 9.6mm Brake Disc Dimensions

Outside Diameter
 277mm
Thickness
9.6mm
Mounting P.C.D.
176.8mm
Mounting Type
Bolted - 8 Bolt
Eye Diameter
192.0mm
Spigot Diameter
mm
Inside Flange Diameter
159.0mm
Mounting Flange Thickness
4.8mm
Mounting Offset
mm
Max Pad Depth
D43.0
No. of Vanes
Air Gap
Weight
2.4Kg
Face Types Available
G4 - Grooved (Straight Forward)
G8 - Grooved (Straight Forward)
Disc Handing
Universal
Universal
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP2866-178G4, CP2866-178G8
