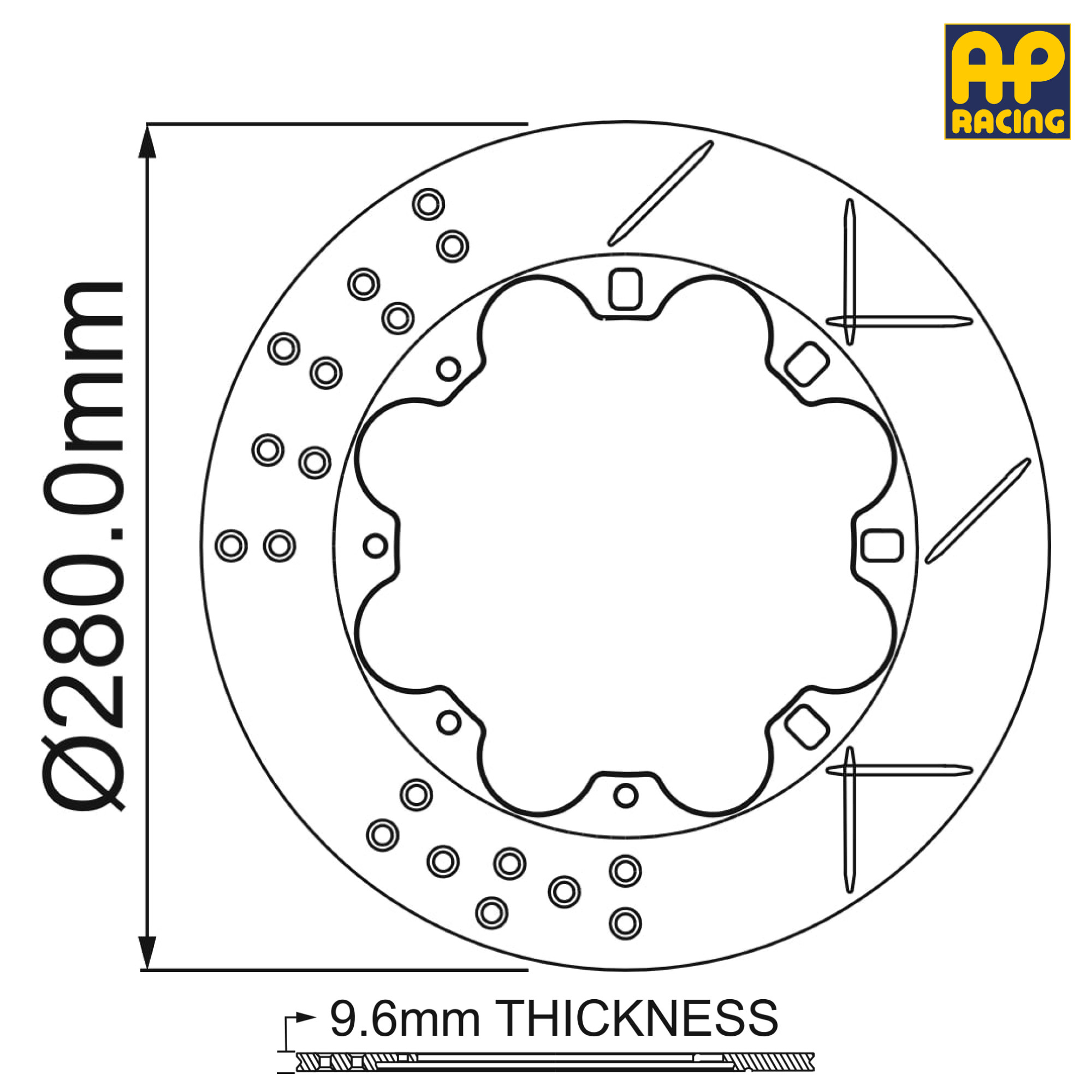

280mm x 9.6mm Brake Disc Dimensions

Outside Diameter	280mm
Thickness	9.6mm
Mounting P.C.D.	176.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	192.0mm
Spigot Diameter	mm
Inside Flange Diameter	159.0mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	2.5Kg
Face Types Available	G4 - Grooved (Straight Forward) G8 - Grooved (Straight Forward) CG4 - Curved Grooves (Backward Forward)
Disc Handing	Universal
Notes
