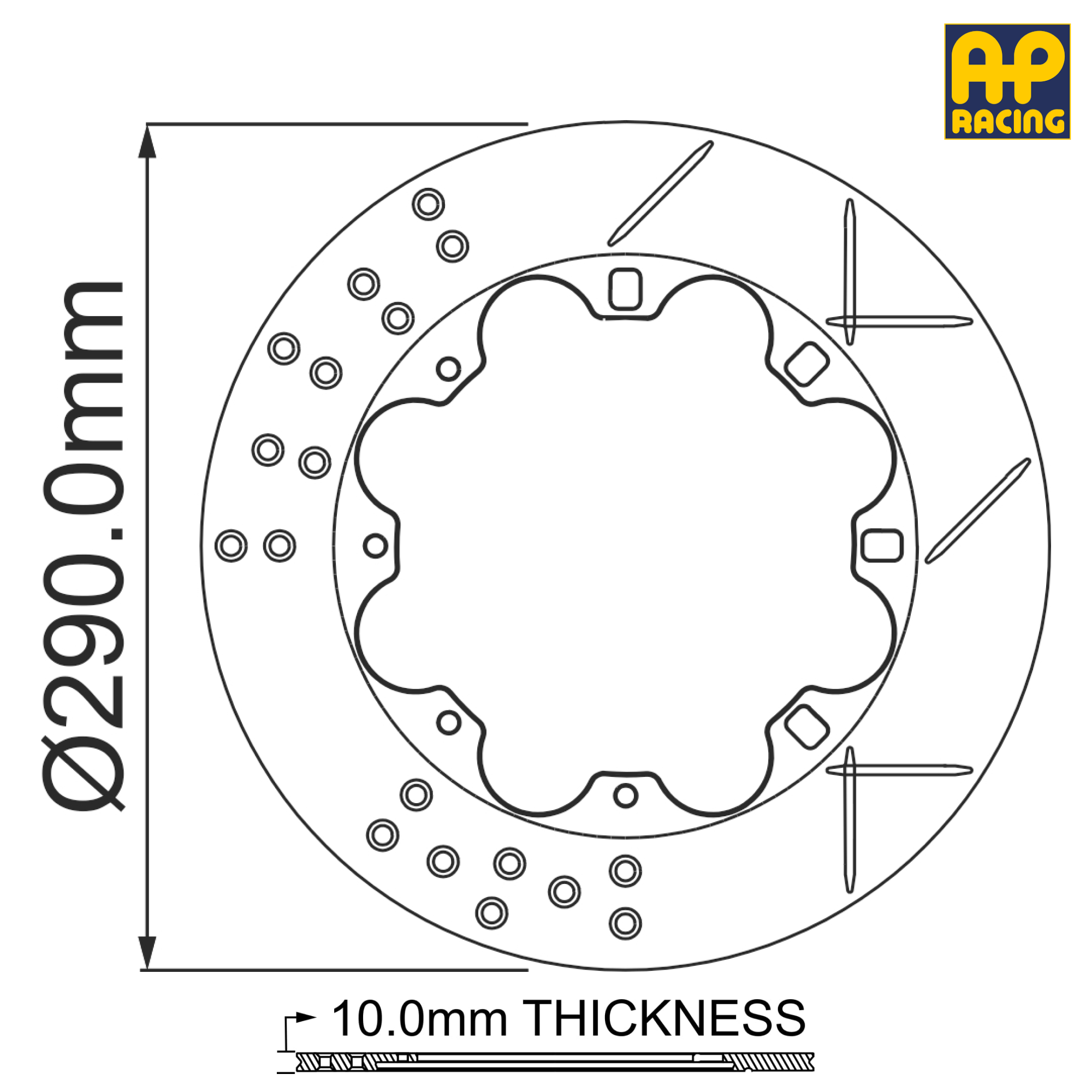

290mm x 10.0mm Brake Disc Dimensions

Outside Diameter	290mm
Thickness	10.0mm
Mounting P.C.D.	180.0mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	201.7mm
Spigot Diameter	mm
Inside Flange Diameter	155.0mm
Mounting Flange Thickness	5.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes
Air Gap
Weight	2.6Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
