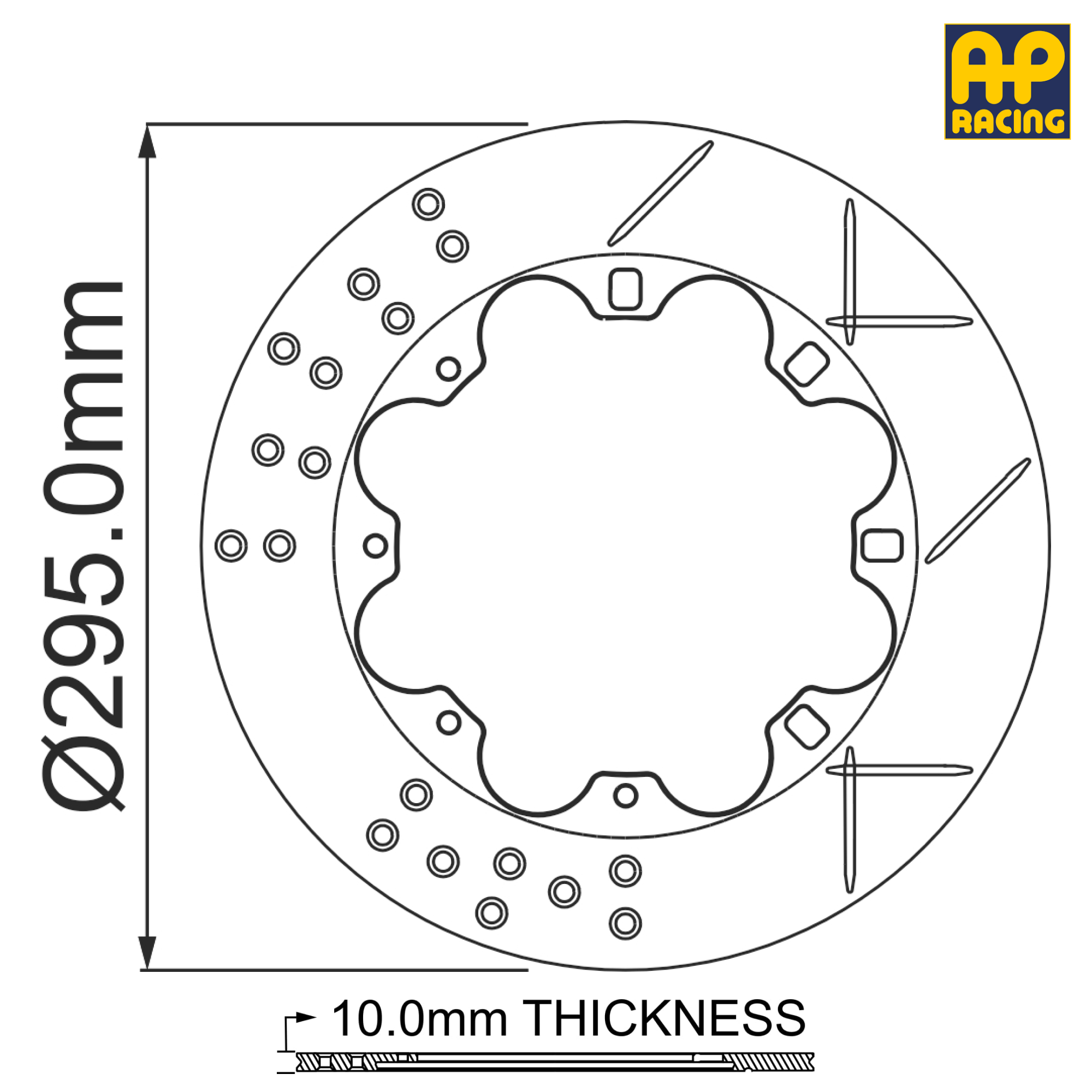

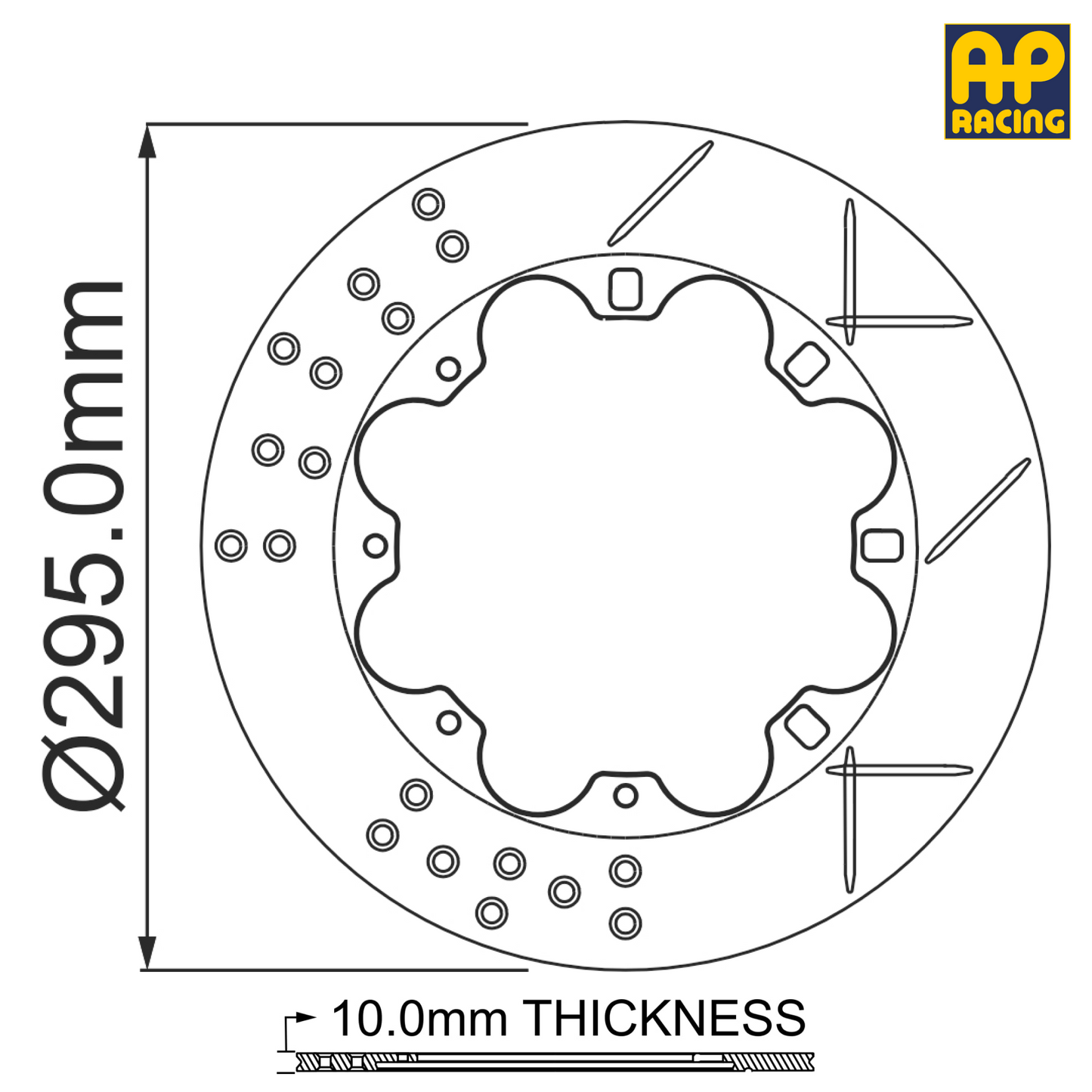

295mm x 10.0mm Brake Disc Dimensions

Outside Diameter	295mm
Thickness	10.0mm
Mounting P.C.D.	176.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	192.0mm
Spigot Diameter	mm
Inside Flange Diameter	159.0mm
Mounting Flange Thickness	4.8mm
Mounting Offset	mm
Max Pad Depth	D48.0
No. of Vanes
Air Gap
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
